Oil Injected Two Stage Compressor（TPM Series）
IE4 Premium Efficiency（IE5 Optional）, Low-Noise,PM Motor(IP65),Dual VSD
- Ultra-Premium Efficiency: IE5 Permanent Magnet Motors.
- Two-Stage Technology: Lower compression ratio for longer life.
- IoT 4.0 Ready: Remote monitoring via smartphone app.
- Constant Pressure: Fluctuations within ±0.01MPa.
1.High-Efficiency Low-Speed Two Stage Screw Airend
Isothermal Compression Principle，higher volumetric efficiency，Low Compression Ration
2.Permanent Magnet Premium Efficiency Motor
IE4-class PM motor delivers 98% efficiency with 5% energy saving over standard VFD motors
3.Wide Speed Range with Precise Control
Broad adjustable speed range (25%–100%) with ±0.5% pressure precision for stable operation
4.Dual Inverter Technology
Intelligent dual-frequency drive maintains constant temperature (±1°C) and pressure (±0.1bar) output
5.Customized Main Filter With Air Loss Control
Lower Pressure loss, High Efficiency, longer lifespan
6.Premium SKF Brand Bearing System
Provides 50,000+ hours service life with <0.01mm vibration tolerance
7.Oversized Cooling System
✓ 30% larger radiator with anti-corrosion nano-coating (salt spray test >1000h)
✓ Quick-release dustproof mesh
✓ 15% better heat dissipation than industry average
8.Advanced Oil-Gas Separation
✓ Customized design folding type oil separator
✓ ≤3ppm oil content in output air
✓ Longer lifespan (up to 8000 hours)
| Model | Power (kW) | Capacity (m³/min) | Pressure (bar) | Weight (kg) |
|---|---|---|---|---|
| SZ-75AII | 75 | 15.2 | 8 | 1850 |
| SZ-110AII | 110 | 22.5 | 8 | 2400 |
| SZ-160AII | 160 | 32.8 | 8 | 3100 |
✓ Rapid return on investment
The electricity savings can typically cover the equipment purchase cost within 12-24 months.
✓ Intelligent cloud management
Through the Internet of Things (IoT) system, you can check the machine’s power consumption, stress, and maintenance reminders anytime, anywhere.

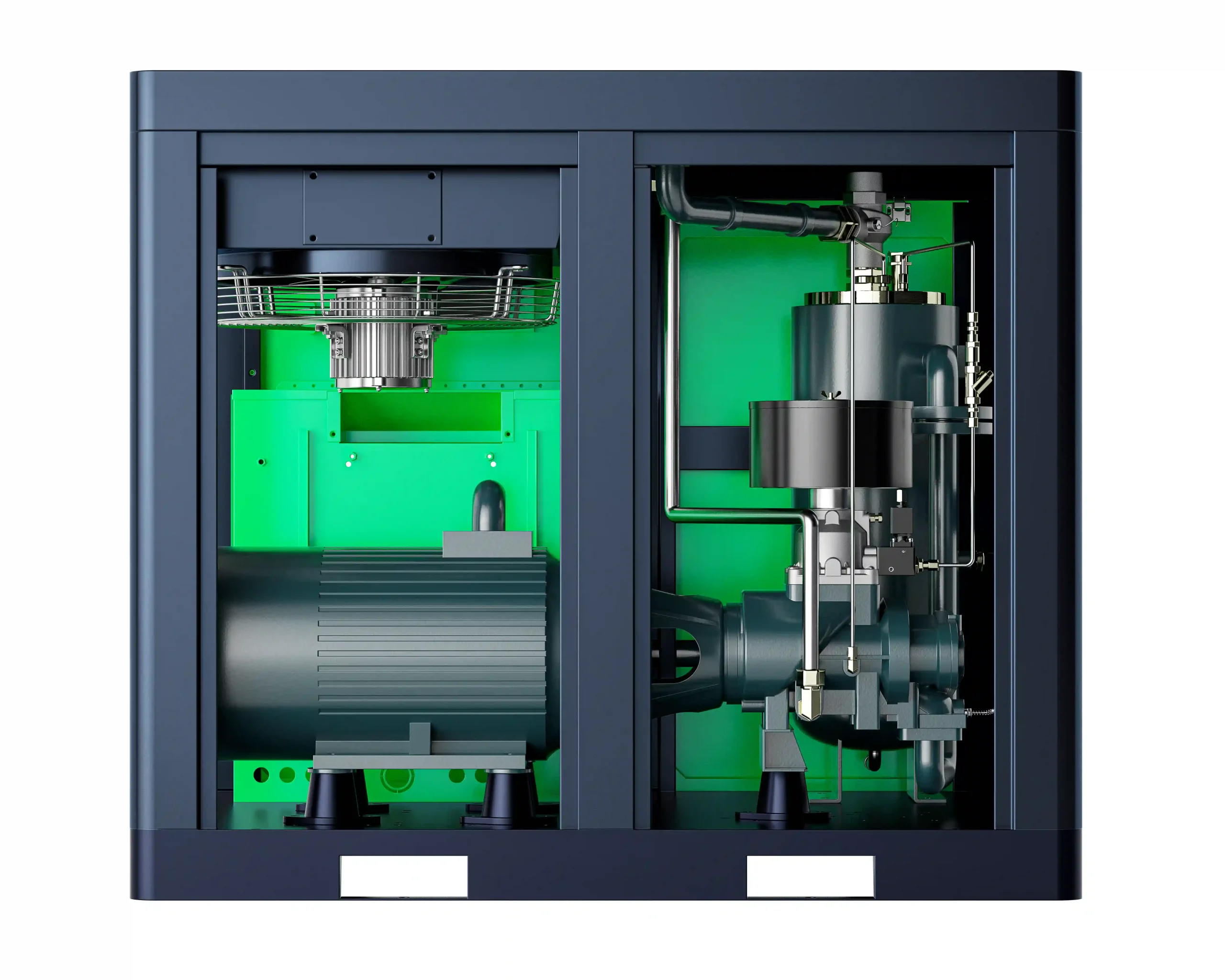

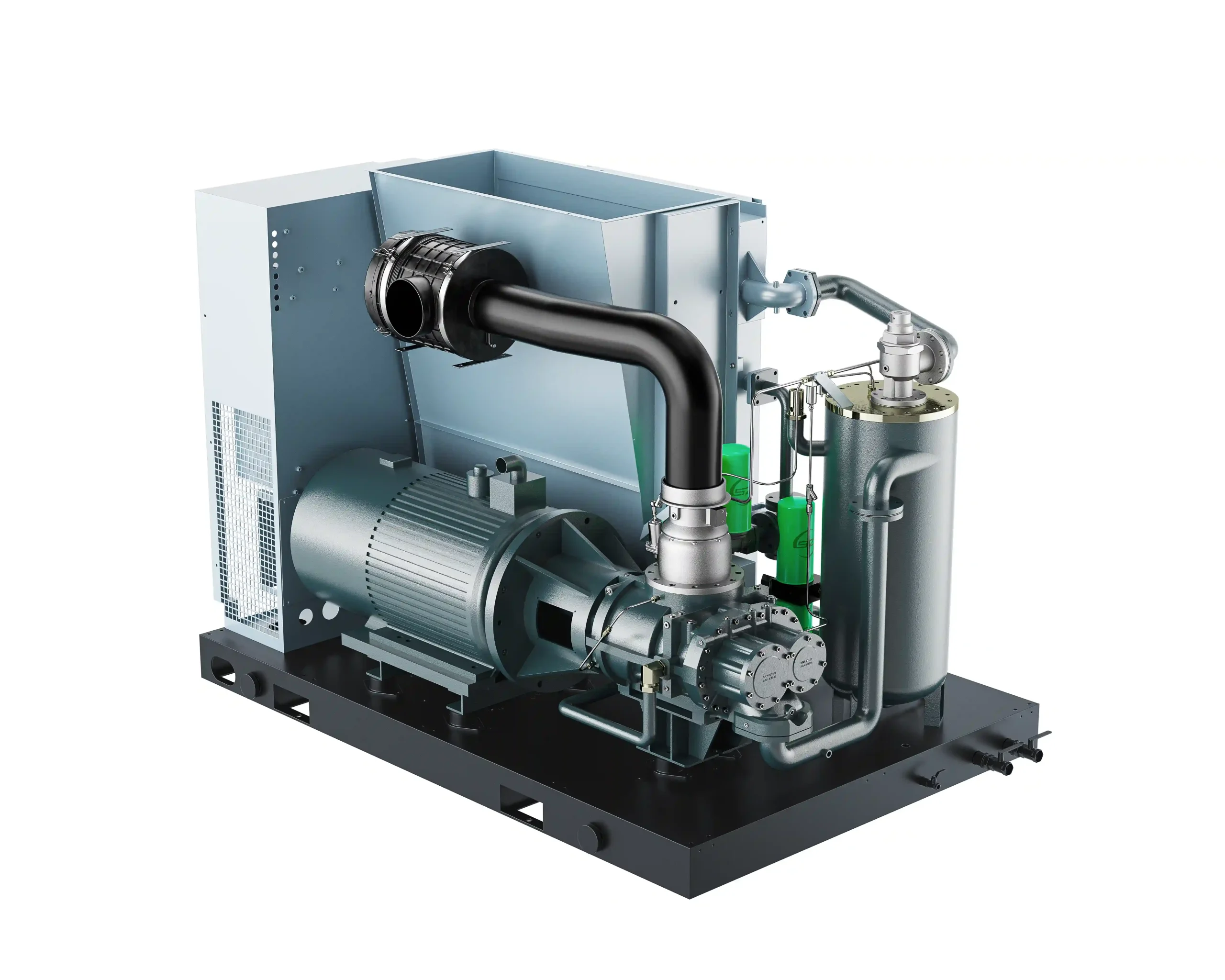

Internal Structure & Components
With its large rotor and low-speed design, its efficiency is 10-15% higher than that of its competitors.
IE5 grade permanent magnet motor, IP65 protection, fearless of extreme high temperature environments.
High-performance variable frequency control enables precise matching of gas volume and power consumption.
24/7
Online Service
5 Years
Core Warranty
Global
Parts Supply
IoT
Smart Monitor
