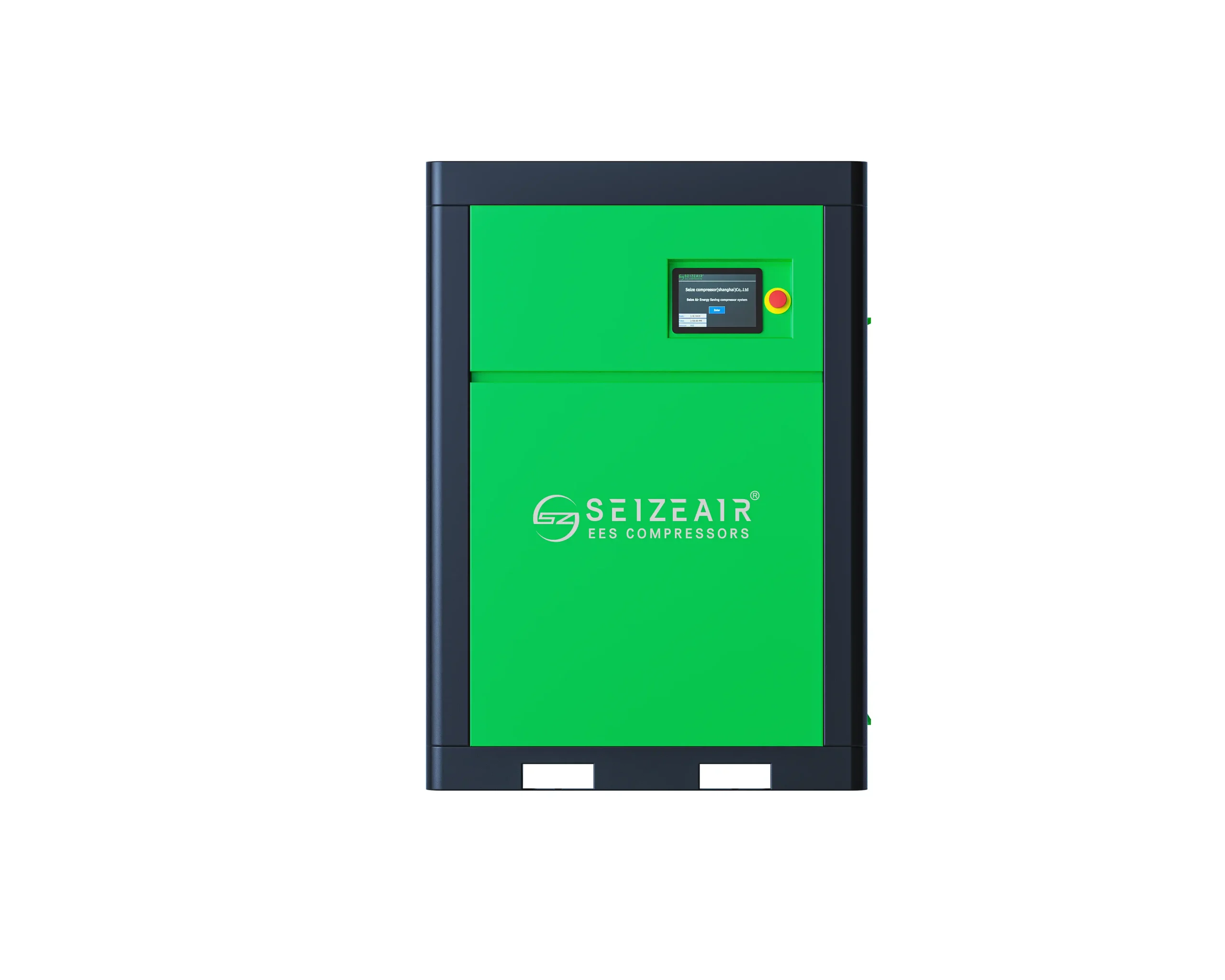

Oil Injected Permanent Magnet Compressor（PM Series/PM+ Series）
IE4 Premium Efficiency（IE5 Optional）, Low-Noise,PM Motor(IP65),Dual VSD
- Ultra-Premium Efficiency: IE5 Permanent Magnet Motors.
- Two-Stage Technology: Lower compression ratio for longer life.
- IoT 4.0 Ready: Remote monitoring via smartphone app.
- Constant Pressure: Fluctuations within ±0.01MPa.
1.Wide Speed Range & Precise Control
Adjustable speed (40%~100%) with ±0.1% precision for stable operation
2.Dual Inverter for Stable Temperature & Pressure
Energy-efficient dual-frequency drive maintains consistent output.
3.Top-Exhaust Air-Cooled Design
External suction and upward ventilation for easy installation and heat dissipation.
4.Premium SKF/FAG 6-Bearing System
High-grade bearings (75+ rating) enhance durability and safety.
5.High-Efficiency, Low-Noise Host Design
Large rotor reduces noise (<65 dB), vibration, and energy consumption (up to 30% savings).
6.Intelligent Cooling & Low Oil Temperature
Stable thermal control (±2°C) ensures reliability and quiet performance.
7.Advanced Oil-Gas Separation (<3 ppm Residual Oil)
Custom oversized separator minimizes pressure loss and air contamination.
| Model | Power (kW) | Capacity (m³/min) | Pressure (bar) | Weight (kg) |
|---|---|---|---|---|
| SZ-75AII | 75 | 15.2 | 8 | 1850 |
| SZ-110AII | 110 | 22.5 | 8 | 2400 |
| SZ-160AII | 160 | 32.8 | 8 | 3100 |
✓ Rapid return on investment
The electricity savings can typically cover the equipment purchase cost within 12-24 months.
✓ Intelligent cloud management
Through the Internet of Things (IoT) system, you can check the machine’s power consumption, stress, and maintenance reminders anytime, anywhere.

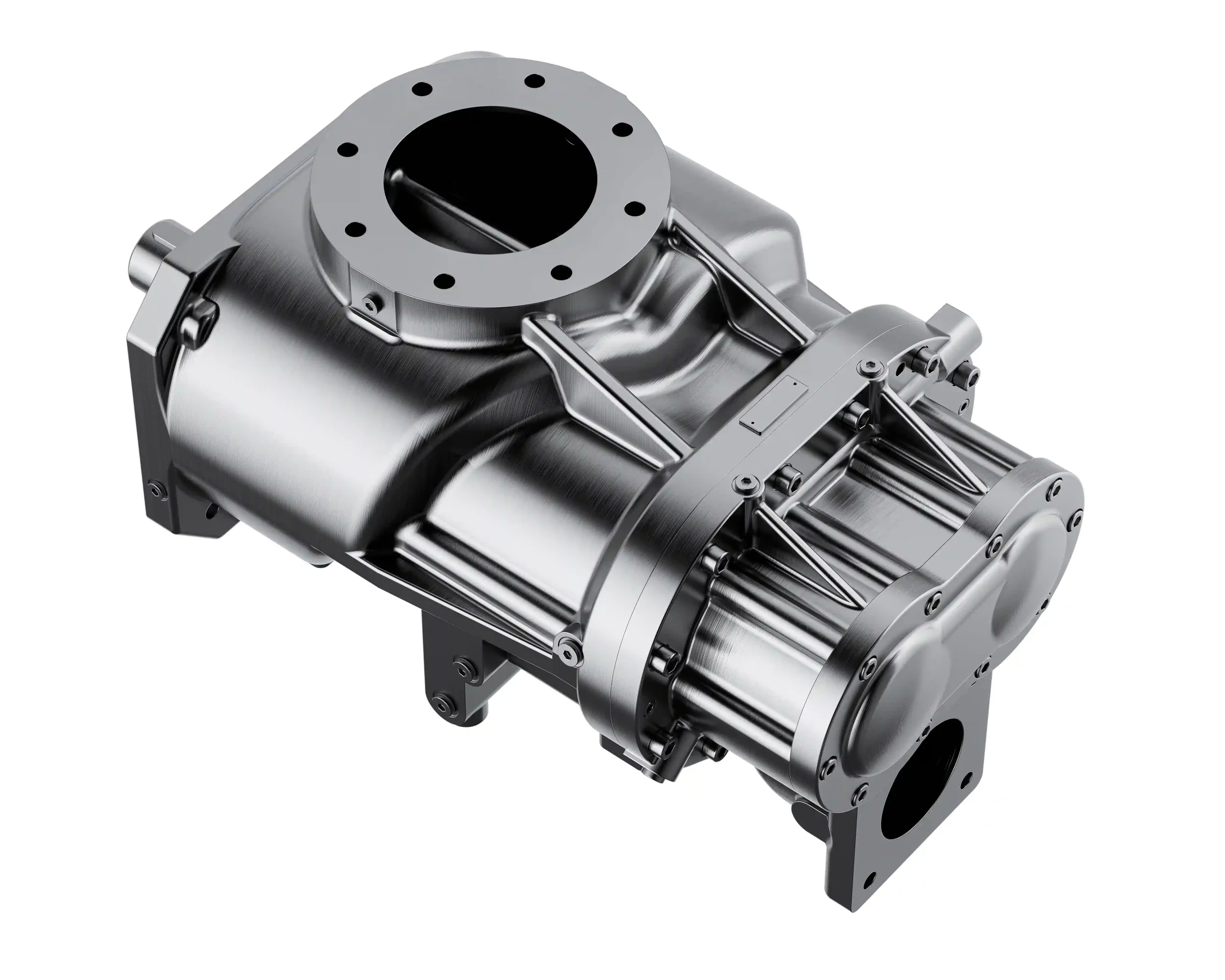

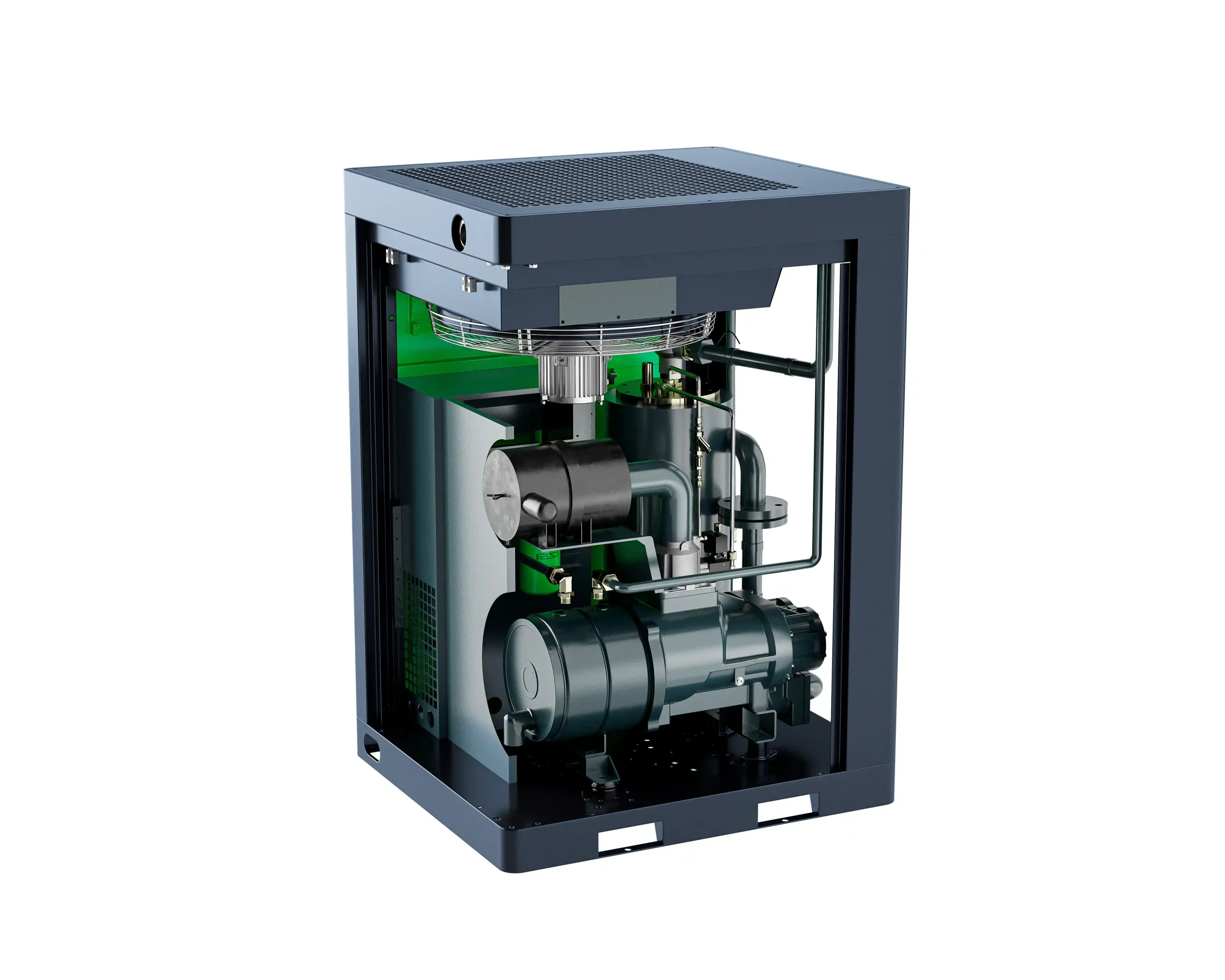

Internal Structure & Components
With its large rotor and low-speed design, its efficiency is 10-15% higher than that of its competitors.
IE5 grade permanent magnet motor, IP65 protection, fearless of extreme high temperature environments.
High-performance variable frequency control enables precise matching of gas volume and power consumption.
