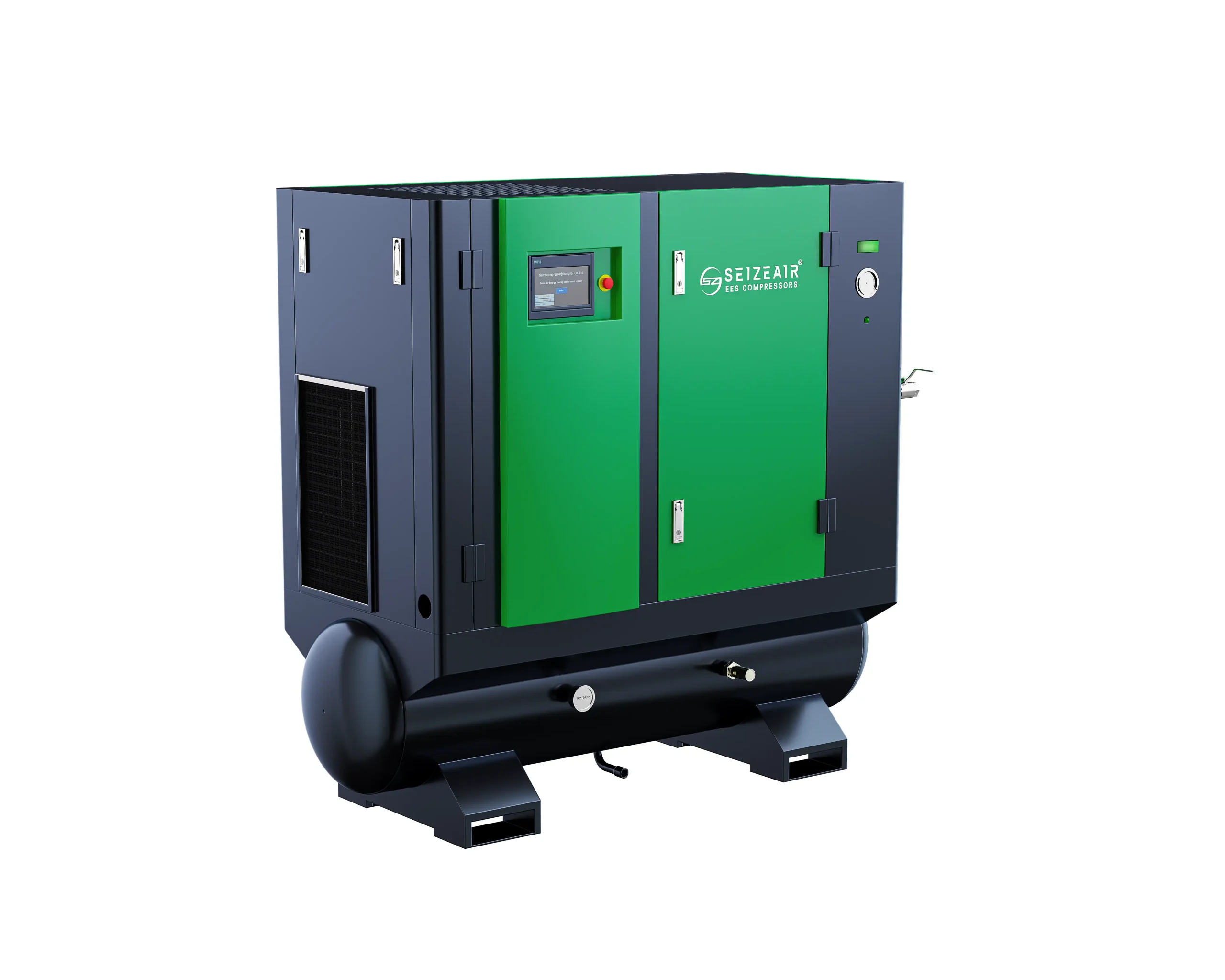

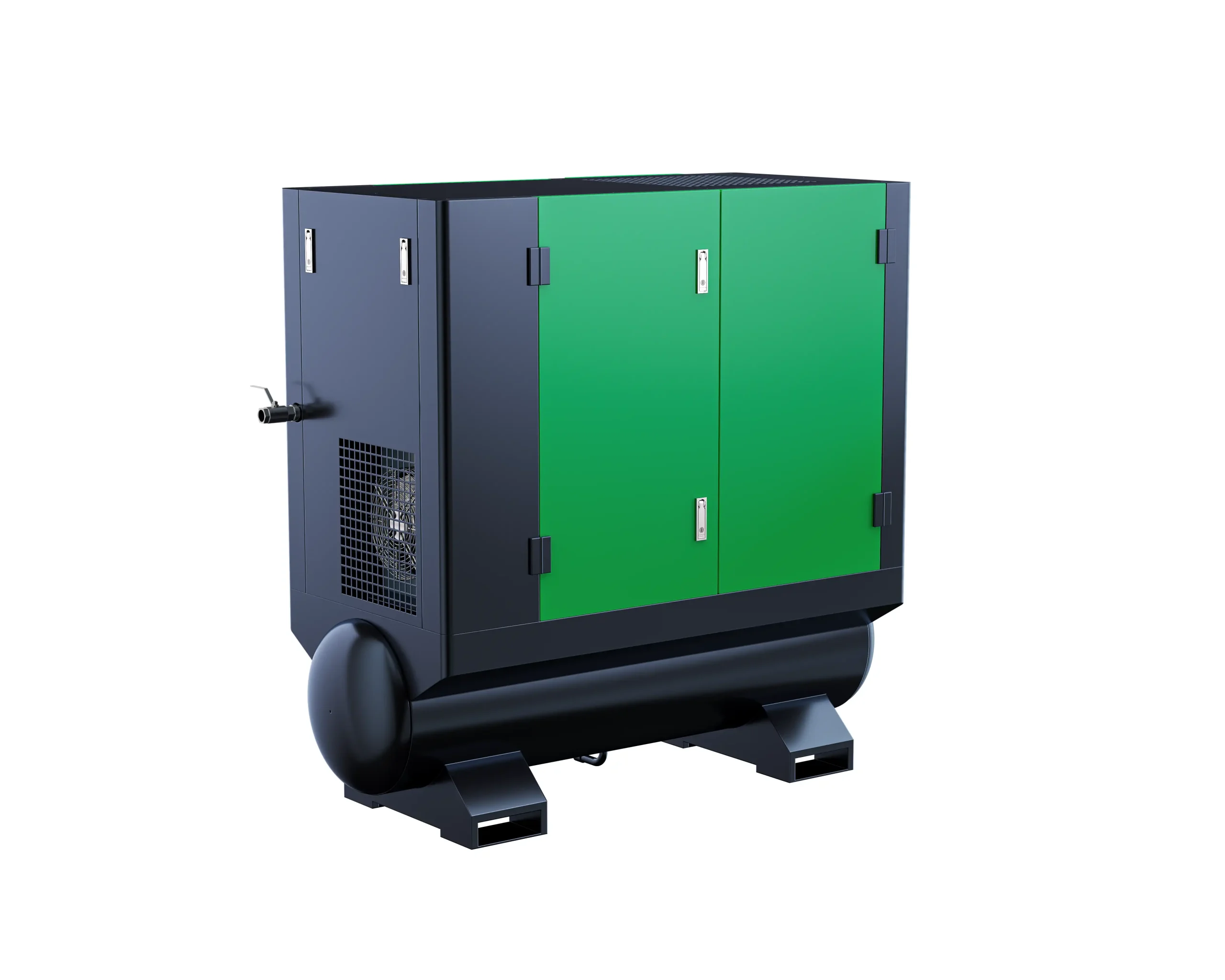

Oil Injected All In One Compressor（FF Series）
Intelligent Variable Frequency Air Compressor System with Integrated Cooling & Filtration
- Ultra-Premium Efficiency: IE5 Permanent Magnet Motors.
- Two-Stage Technology: Lower compression ratio for longer life.
- IoT 4.0 Ready: Remote monitoring via smartphone app.
- Constant Pressure: Fluctuations within ±0.01MPa.
1.Smart VFD Control System
● Variable frequency drive maintains constant pressure output (±0.1 bar)
● Real-time temperature monitoring with automatic adjustment
● User-friendly interface with one-touch operation
2.Direct-Drive Permanent Magnet Motor
● IE4/IE5 high-efficiency permanent magnet motor
● 100% transmission efficiency (no gearbox losses)
● Eliminates idle running energy waste
● Coaxial integrated design reduces vibration by 40%
3.Dual Oil Separation System
● Primary: High-flow internal separator (200% standard capacity)
● Secondary: Precision external separator
● Delivers ultra-clean air (<3ppm oil content)
4.Integrated Refrigerated Air Dryer & Filtration
● Triple-stage filtration system:
○ 1μm particulate filter
○ Activated carbon filter
○ Coalescing filter
● Dual drainage options (auto/manual)
● Achieves -40°C pressure dew point
5.Complete Stainless Steel Piping System
● Precision-drawn stainless steel tubing: Zero corrosion risk
○ 30% lower pressure drop
○ Clean, streamlined appearance
● Simplified maintenance-free design
| Model | Power (kW) | Capacity (m³/min) | Pressure (bar) | Weight (kg) |
|---|---|---|---|---|
| SZ-75AII | 75 | 15.2 | 8 | 1850 |
| SZ-110AII | 110 | 22.5 | 8 | 2400 |
| SZ-160AII | 160 | 32.8 | 8 | 3100 |
✓ Rapid return on investment
The electricity savings can typically cover the equipment purchase cost within 12-24 months.
✓ Intelligent cloud management
Through the Internet of Things (IoT) system, you can check the machine’s power consumption, stress, and maintenance reminders anytime, anywhere.

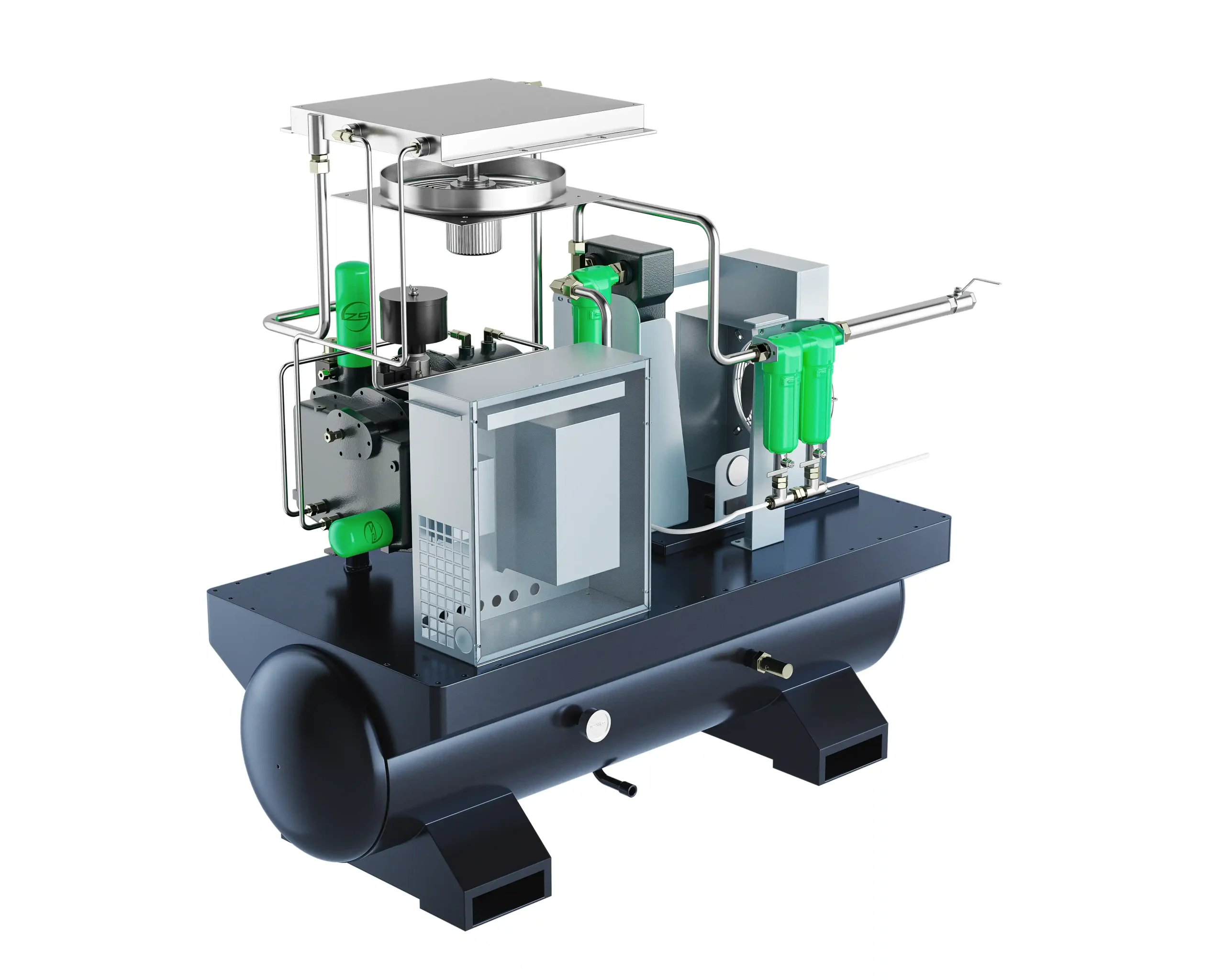

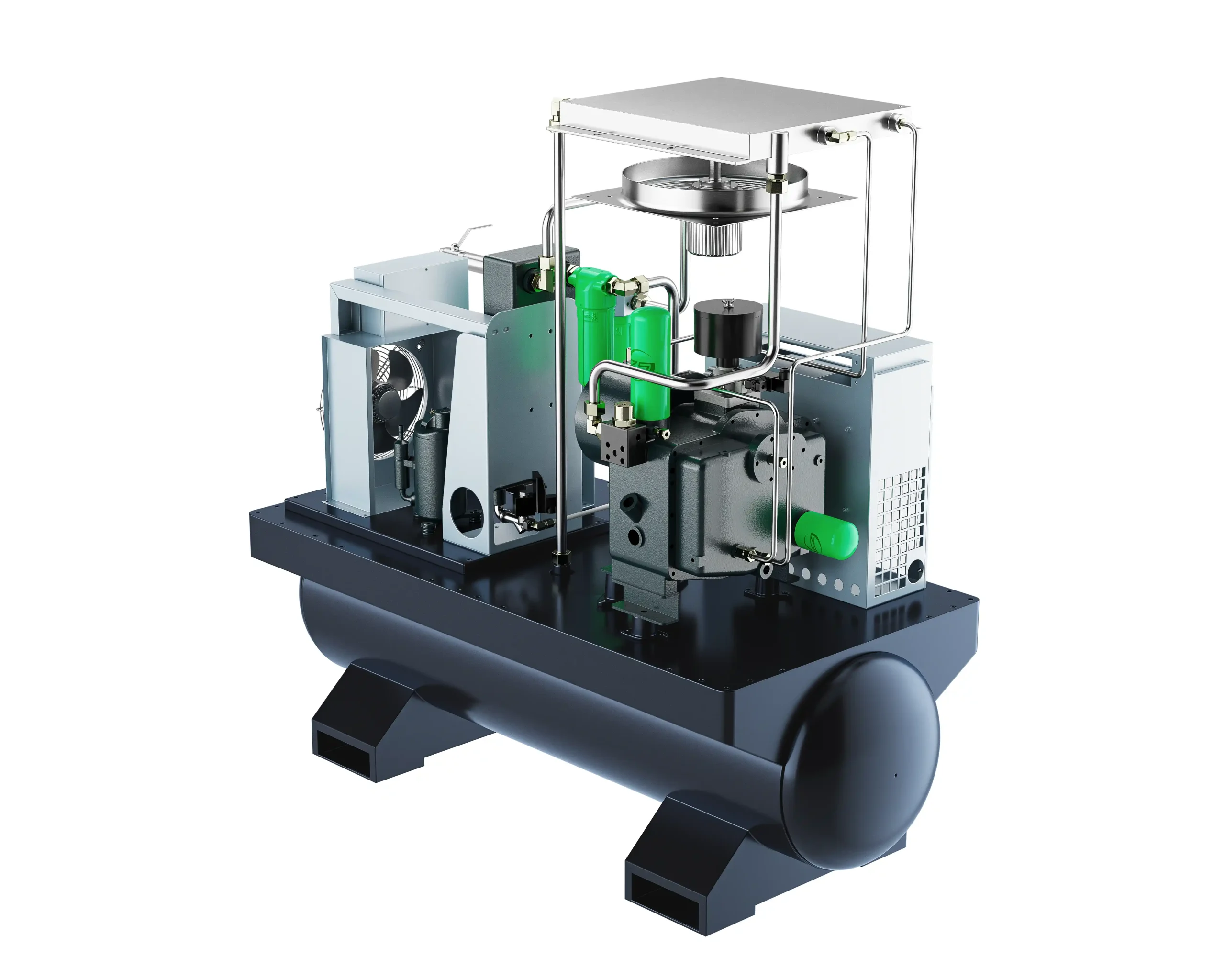

Internal Structure & Components
With its large rotor and low-speed design, its efficiency is 10-15% higher than that of its competitors.
IE5 grade permanent magnet motor, IP65 protection, fearless of extreme high temperature environments.
High-performance variable frequency control enables precise matching of gas volume and power consumption.
