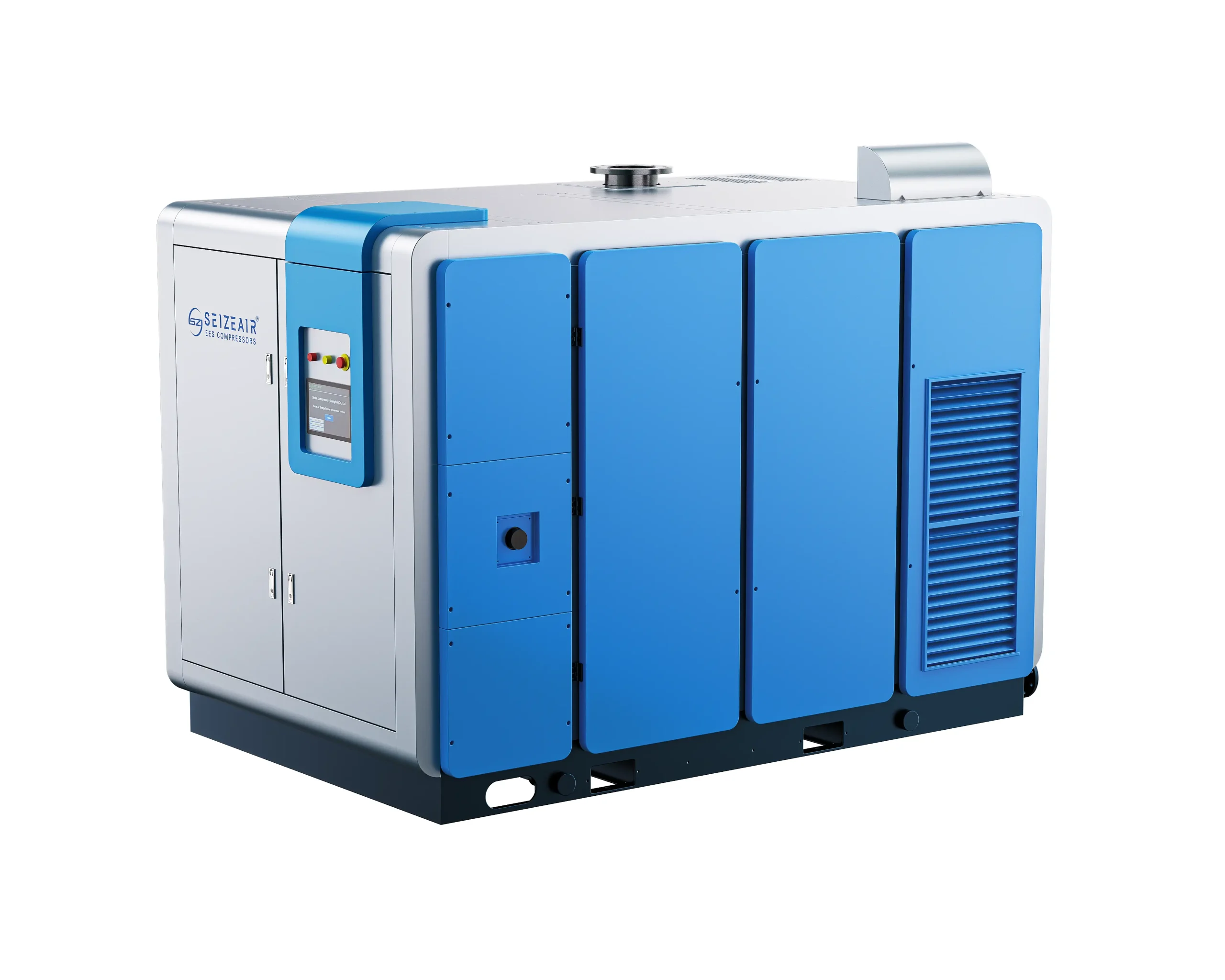

Magnetic levitation centrifugal energy-saving air compressor
Premium Efficiency,Low Noise and Vibration,Compact Structure
- Ultra-Premium Efficiency: IE5 Permanent Magnet Motors.
- Two-Stage Technology: Lower compression ratio for longer life.
- IoT 4.0 Ready: Remote monitoring via smartphone app.
- Constant Pressure: Fluctuations within ±0.01MPa.
1.Patented SEIZE Impeller Technology
● Aerospace-grade 7075 aluminum impeller with 5-axis CNC precision machining (1μm tolerance)
● 3D flow optimization via CFD analysis, achieving 92%+ polytropic efficiency
● 115% overspeed tested + anodized surface treatment for corrosion/wear resistance
2.Advanced Dual-Cooling System
● Internal air cooling: EBM blowers maintain rotor temperature <65°C
● External liquid cooling:
✓ Glycol circulation keeps stator at <45°C (freeze-proof)
✓ Shell-and-tube heat exchanger improves 3% isothermal efficiency
✓ Integrated low-pressure-drop water cooler with moisture separation
3.Active Magnetic Bearing System
● 5-DOF contactless suspension (zero friction/wear)
● 10,000+ real-time corrections/sec via position sensors
● Self-powering during outages (kinetic energy conversion)
● 30+ emergency bearing drop tests passed
4.Intelligent Control & Monitoring
● INVT premium VFD (97% efficiency, ±0.2% speed accuracy)
● ASME-calibrated flow measurement (eliminates external meters)
● 4G IoT dashboard for:
✓ Real-time pressure/temperature/power monitoring
✓ Predictive maintenance alerts
✓ Multi-unit synchronization
5.Energy-Saving Innovations
● Dual-stage air filtration (99.9% @1μm) extends filter life 3X
● 10% speed-adjusted savings vs. bypass systems
● Low-velocity airflow design (<10m/s, 3% energy reduction)
● External cold air intake boosts 2% thermal efficiency
6.Acoustic & Reliability Features
● 72dB(A) at 1m (40% quieter than gear-driven models)
● Vibration <0.5mm/s (ISO 10816 Class A)
● Zero lubrication = 60,000+ hour bearing life
● Pre-cyclone intake + nanofiber filters protect critical components
7.Key Advantages
✔ 30% Lower TCO vs. traditional blowers
✔ Plug-and-play installation
✔ ATEX/ISO 1217 Class 0 compliant
✔ 24/7 remote monitoring
| Model | Power (kW) | Capacity (m³/min) | Pressure (bar) | Weight (kg) |
|---|---|---|---|---|
| SZ-75AII | 75 | 15.2 | 8 | 1850 |
| SZ-110AII | 110 | 22.5 | 8 | 2400 |
| SZ-160AII | 160 | 32.8 | 8 | 3100 |
✓ Rapid return on investment
The electricity savings can typically cover the equipment purchase cost within 12-24 months.
✓ Intelligent cloud management
Through the Internet of Things (IoT) system, you can check the machine’s power consumption, stress, and maintenance reminders anytime, anywhere.

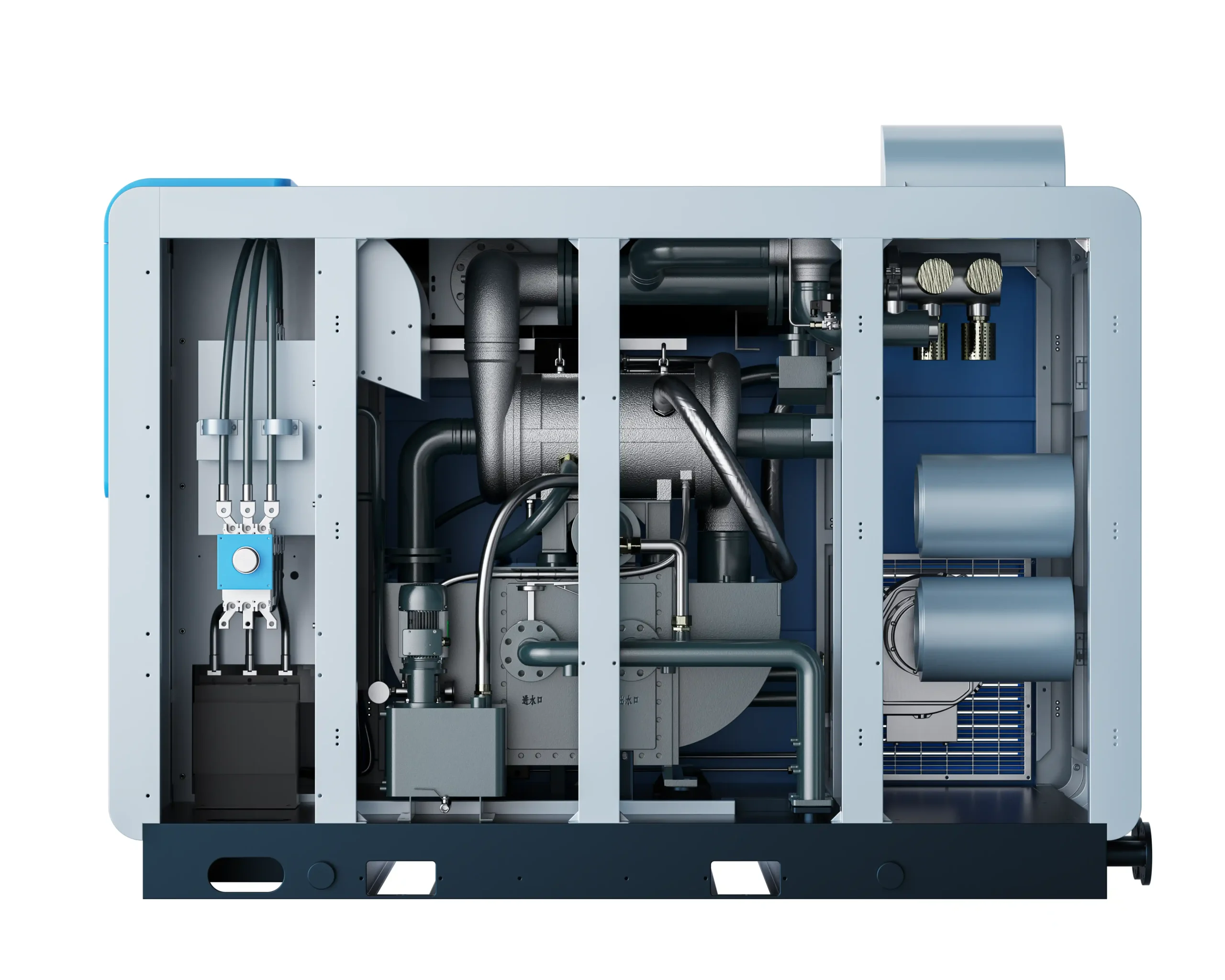

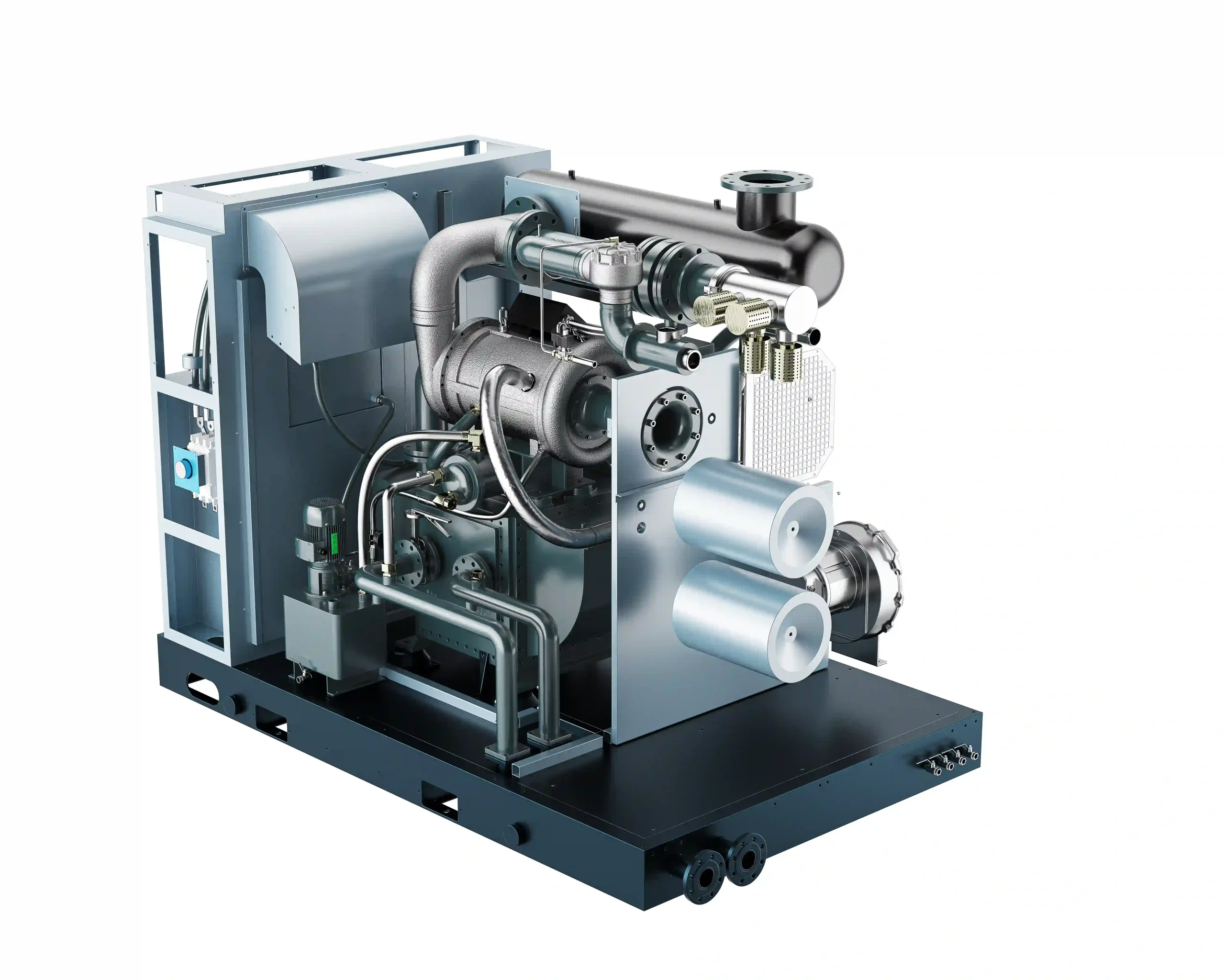

Internal Structure & Components
With its large rotor and low-speed design, its efficiency is 10-15% higher than that of its competitors.
IE5 grade permanent magnet motor, IP65 protection, fearless of extreme high temperature environments.
High-performance variable frequency control enables precise matching of gas volume and power consumption.
24/7
Online Service
2 Years
Core Warranty
Global
Parts Supply
IoT
Smart Monitor
